Section 1.4 Fundamentals of PID Control

A Proportional-Integral-Derivative (PID) Controller is the most widely used closed-loop control algorithm in robotics. It continuously measures an error \(e(t)\)—the difference between the desired setpoint \(r(t)\) and the actual measured value \(y(t)\text{:}\)

\begin{equation*} e(t) = r(t) - y(t) \end{equation*}

It then calculates a control signal \(u(t)\) combining three distinct mathematical actions:

\begin{equation*} u(t) = K_p e(t) + K_i \int_0^t e(\tau) \, d\tau + K_d \frac{de(t)}{dt} \end{equation*}

To understand how these three terms work together, imagine driving a car toward a red light at a stop light:

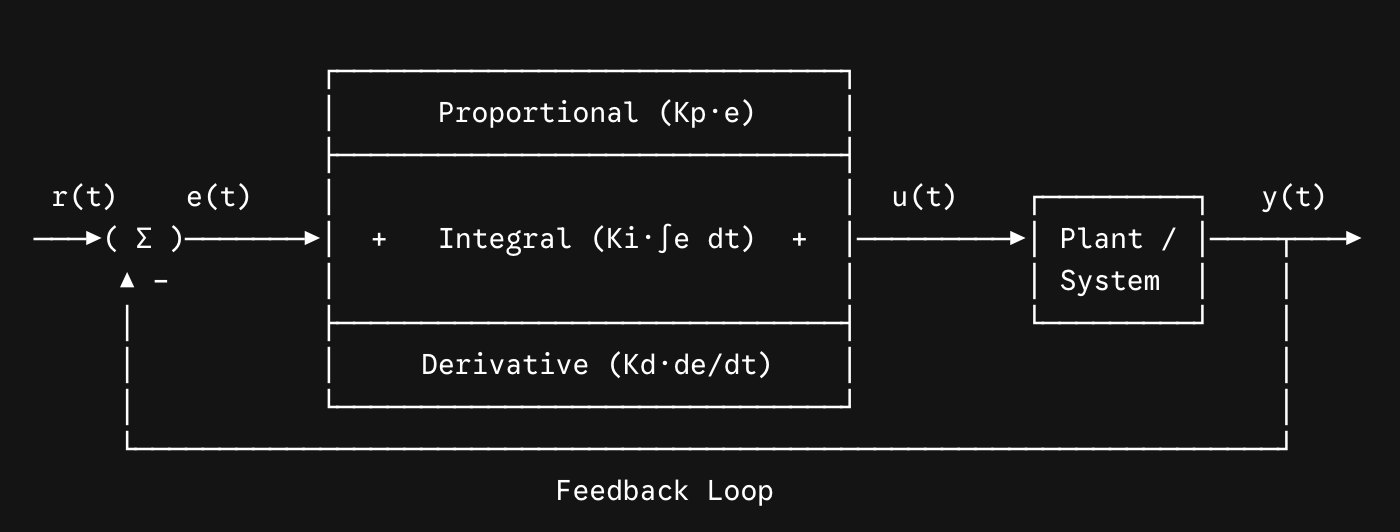

Figure 1.4.1. A PID controller combines proportional, integral, and derivative responses to drive a system toward its desired setpoint.

Subsection 1.4.1 Breakdown of the Car Analogy

To connect the math \(u(t) = K_p e(t) + K_i \int_0^t e(\tau) \, d\tau + K_d \frac{de(t)}{dt}\) to driving a car toward a red light:

Error \(e(t)\text{:}\) The remaining distance between your car and the stop light.
Proportional Term (\(K_p \cdot e(t)\)) — Present Error: Pushes the brake or gas proportional to how far away you are. If you are far away, press hard on the gas; as you get closer, ease off.
Integral Term (\(K_i \int e(\tau) \, d\tau\)) — Past Accumulation: Accounts for persistent past error. If a slight uphill slope prevents the car from reaching the stop line despite \(K_p\text{,}\) error accumulates over time, gently building up extra throttle to nudge the car to the exact setpoint.
Derivative Term (\(K_d \cdot \frac{de(t)}{dt}\)) — Future Trend: Looks at how fast the error is changing (your approach speed). If you are closing in fast, \(\frac{de(t)}{dt}\) is strongly negative, applying resistance (braking) early to prevent overshooting the stop line.

Subsection 1.4.2 Interactive PID Simulator

Adjust the tuning gains (\(K_p\text{,}\) \(K_i\text{,}\) and \(K_d\)) to see how the system output responds to a step change in setpoint.

Subsection 1.4.3 The Proportional Term (P) — "How far am I right now?"

Formula: \(K_p \cdot e(t)\)
Concept: Reacts strictly to the present error. The farther you are from your target, the harder the system pushes.
Real-Life Example: You are driving toward a stop line 100 meters away. When you are far away (100 m error), you press the gas pedal down hard. As you get closer (10 m error), you ease off the pedal proportional to the remaining distance.
Robotic Limitation: If your robot encounters physical resistance (e.g., floor friction or gravity on an incline), the motor force generated by \(K_p \cdot e(t)\) eventually drops below the friction threshold. The robot stops before reaching the goal, leaving a persistent steady-state error.

Subsection 1.4.4 The Integral Term (I) — "How long have I been stuck?"

Formula: \(K_i \cdot \int_0^t e(\tau) \, d\tau\)
Concept: Sums up past errors over time. If an error persists—no matter how small—the integral accumulator steadily grows to push the system harder.
Real-Life Example: Imagine trying to hold a car steady on a steep hill using just the throttle. If you stop slightly short of your target mark because gravity is holding you back, the integral term notices: “We’ve been 0.5 meters short for 5 seconds now!” It ramps up extra engine torque to climb those last few centimeters and eliminate the gap completely.
Robotic Limitation: If \(K_i\) is tuned too high, it can accumulate too much momentum (called integral windup), causing the system to shoot past the goal before catching itself.

Subsection 1.4.5 The Derivative Term (D) — "How fast am I approaching?"

Formula: \(K_d \cdot \frac{de(t)}{dt}\)
Concept: Predicts future error by looking at the current rate of change. It acts as an automatic brake when approaching the goal quickly.
Real-Life Example: Even if you are 20 meters away from the stop line, if your speedometer says you are moving at 90 km/h, common sense tells you to slam on the brakes now to avoid crashing through the intersection. The derivative term measures this rapid closure rate (\(\frac{de}{dt}\)) and exerts an opposing counter-force to smooth out your arrival.
Robotic Advantage: Dampens oscillations and prevents the robot from violently overshooting its target position.

Subsection 1.4.6 Summary of PID Roles

Term	Focus	Real-Life Analogy	Main Benefit	Main Risk
P (Proportional)	Present	How hard you press the gas based on distance	Fast initial response to reach target	Steady-state error under friction
I (Integral)	Past	Adding throttle on a hill when stuck short of target	Eliminates steady-state error completely	Overshoot & instability if over-accumulated
D (Derivative)	Future	Pressing the brake early when closing in too fast	Dampens overshoot & smooths stopping	Amplifies high-frequency sensor noise

Subsection 1.4.7 Section 1.4 Interactive Exercises

Subsubsection 1.4.7.1 Exercise 1.4.1: Tuning Proportional Gain (\(K_p\)) & Integral Gain (\(K_i\)) Simulation

Below is a 1D simulation of a robot attempting to reach \(x_{\text{goal}} = 10.0\) meters using proportional control (\(K_p\)) subject to steady friction.

Task:

Run the code with KP_VAL = 0.5 and KI_VAL = 0.0. Notice how physical friction halts the robot around \(x \approx 7.0\) m, leaving a persistent steady-state error.
Increase KP_VAL to 1.5 and 3.0. Notice how a stronger proportional force pushes closer to the goal but starts overshooting.
Reset KP_VAL = 0.5 and set KI_VAL = 0.2. Watch how the integral term builds force over time to drag the robot all the way to 10.0 m.

def simulate_p_control(x_goal, Kp, Ki=0.0, steps=30):
    x_pos = 0.0
    velocity = 0.0
    dt = 0.1
    friction = 0.3  # Environmental resistance counteracting motion
    integral = 0.0

print(f"--- Simulating Control Loop (Goal = {x_goal}m) ---")
    print("Step | Position (m) | Error (m) | Control Output")
    print("------------------------------------------------")

for step in range(1, steps + 1):
        error = x_goal - x_pos
        integral += error * dt

# PID Control signal computation
        u = (Kp * error) + (Ki * integral)

# Physical physics step simulation
        net_force = u - (friction if x_pos < x_goal else -friction)
        acceleration = net_force  # Assume mass = 1.0 kg

velocity += acceleration * dt
        x_pos += velocity * dt

print(f"{step:4d} | {x_pos:12.3f} | {error:9.3f} | {u:14.3f}")

# --- Student Experimentation Area ---
# TODO: Modify Kp and Ki values below and observe steady-state error behavior!
KP_VAL = 0.5
KI_VAL = 0.0

simulate_p_control(x_goal=10.0, Kp=KP_VAL, Ki=KI_VAL, steps=25)

Reading Questions 1.4.8 Reading Questions

Check your understanding

1. Exercise 1.4.2: PID Term Matching Conceptual Check.

Which component of a PID controller acts like a "brake" to dampen overshoot and oscillation by resisting rapid changes in error state?

Proportional Term
Incorrect. The proportional term produces control output directly relative to current error magnitude, which often causes overshoot if set high.
Integral Term
Incorrect. The integral term accumulates historical error over time to eliminate steady-state offsets.
Derivative Term
Correct! The derivative term measures the rate of change of error (\(\frac{de}{dt}\)) and acts as a dampener to prevent overshoot.
Feedforward Term
Incorrect. Feedforward is an open-loop estimation element, not part of standard error-feedback PID terms.
