Section 3.1 Linear Transformations (AT1)

Subsection 3.1.1 Class Activities

Definition 3.1.1.

A linear transformation (also called a linear map) is a map between vector spaces that preserves the vector space operations. More precisely, if \(V\) and \(W\) are vector spaces, a map \(T:V\rightarrow W\) is called a linear transformation if

  1. \(T(\vec{v}+\vec{w}) = T(\vec{v})+T(\vec{w})\) for any \(\vec{v},\vec{w} \in V\text{,}\) and

  2. \(T(c\vec{v}) = cT(\vec{v})\) for any \(c \in \IR,\) and \(\vec{v} \in V\text{.}\)

In other words, a map is linear when vector space operations can be applied before or after the transformation without affecting the result.

Definition 3.1.2.

Given a linear transformation \(T:V\to W\text{,}\) \(V\) is called the domain of \(T\) and \(W\) is called the co-domain of \(T\text{.}\)

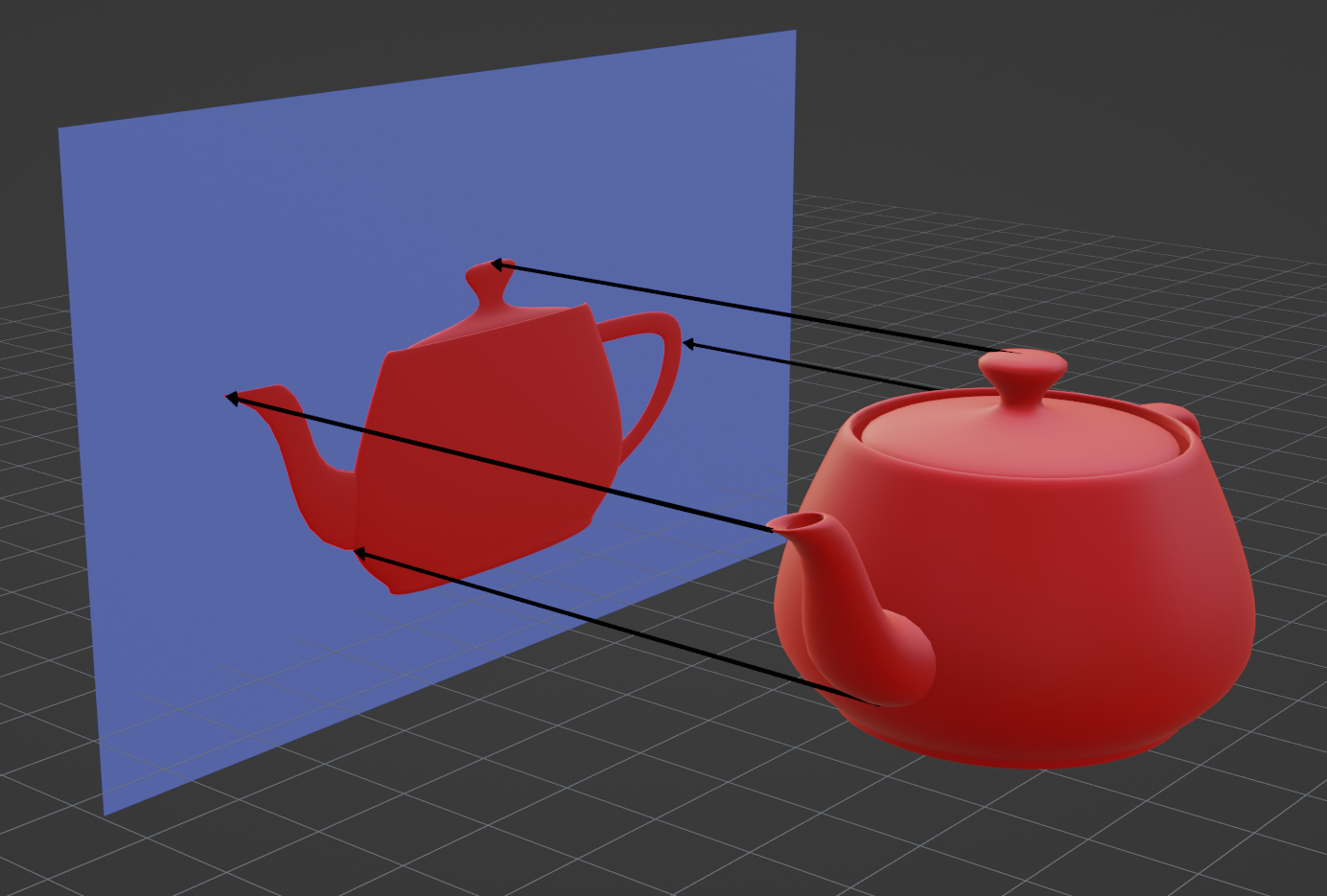

Figure 23. A linear transformation with a domain of \(\IR^3\) and a co-domain of \(\IR^2\)

Example 3.1.3.

Let \(T : \IR^3 \rightarrow \IR^2\) be given by

\begin{equation*} T\left(\left[\begin{array}{c} x \\ y \\ z \end{array}\right] \right) = \left[\begin{array}{c} x-z \\ 3y \end{array}\right]. \end{equation*}

To show that \(T\) is a linear transformation, we must verify that \(T(\vec{v}+\vec{w}) = T(\vec{v})+T(\vec{w})\) by computing

\begin{equation*} T\left( \left[\begin{array}{c} x \\ y \\ z \end{array}\right] + \left[\begin{array}{c} u \\ v \\ w \end{array}\right] \right) = T\left( \left[\begin{array}{c} x+u \\ y+v \\ z+w \end{array}\right] \right) = \left[\begin{array}{c} (x+u)-(z+w) \\ 3(y+v) \end{array}\right] \end{equation*}

and

\begin{equation*} T\left( \left[\begin{array}{c} x \\ y \\ z \end{array}\right] \right) + T\left( \left[\begin{array}{c} u \\ v \\ w \end{array}\right] \right) = \left[\begin{array}{c} x-z \\ 3y \end{array}\right] + \left[\begin{array}{c} u-w \\ 3v \end{array}\right]= \left[\begin{array}{c} (x+u)-(z+w) \\ 3(y+v) \end{array}\right]\text{,} \end{equation*}

and we must verify that \(T(c\vec{v}) = cT(\vec{v})\) by computing

\begin{equation*} T\left(c\left[\begin{array}{c} x \\ y \\ z \end{array}\right] \right) = T\left(\left[\begin{array}{c} cx \\ cy \\ cz \end{array}\right] \right) = \left[\begin{array}{c} cx-cz \\ 3cy \end{array}\right] \text{ and } cT\left(\left[\begin{array}{c} x \\ y \\ z \end{array}\right] \right) = c\left[\begin{array}{c} x-z \\ 3y \end{array}\right] = \left[\begin{array}{c} cx-cz \\ 3cy \end{array}\right]\text{.} \end{equation*}

Therefore \(T\) is a linear transformation.

Example 3.1.4.

Let \(S : \IR^2 \rightarrow \IR^4\) be given by

\begin{equation*} S\left(\left[\begin{array}{c} x \\ y \end{array}\right] \right) = \left[\begin{array}{c} x+y \\ x^2 \\ y+3 \\ y-2^x \end{array}\right] \end{equation*}

To show that \(S\) is not linear, we only need to find one counterexample.

\begin{equation*} S\left( \left[\begin{array}{c} 0 \\ 1 \end{array}\right] + \left[\begin{array}{c} 2 \\ 3 \end{array}\right] \right) = S\left( \left[\begin{array}{c} 2 \\ 4 \end{array}\right] \right) = \left[\begin{array}{c} 6 \\ 4 \\ 7 \\ 0 \end{array}\right] \end{equation*}
\begin{equation*} S\left( \left[\begin{array}{c} 0 \\ 1 \end{array}\right] \right) + S\left( \left[\begin{array}{c} 2 \\ 3\end{array}\right] \right) = \left[\begin{array}{c} 1 \\ 0 \\ 4 \\ 0 \end{array}\right] + \left[\begin{array}{c} 5 \\ 4 \\ 6 \\ -1 \end{array}\right] = \left[\begin{array}{c} 6 \\ 4 \\ 10 \\ -1 \end{array}\right] \end{equation*}

Since the resulting vectors are different, \(S\) is not a linear transformation.

Activity 3.1.6.

Let \(D:\P\to\P\) be the derivative map defined by \(D(f(x))=f'(x)\) for each polynomial \(f \in \P\text{.}\) We recall from calculus that

\begin{equation*} D(f(x)+g(x))=f'(x)+g'(x)\text{,} \end{equation*}
and
\begin{equation*} D(cf(x))=cf'(x)\text{.} \end{equation*}

Which of the following can we conclude from these calculus rules?

  1. \(\P\) is not a vector space

  2. \(D\) is a linear map

  3. \(D\) is not a linear map

Activity 3.1.7.

Let the polynomial maps \(S: \P_4 \rightarrow \P_3\) and \(T: \P_4 \rightarrow \P_3\) be defined by

\begin{equation*} S(f(x)) = 2f'(x)-f''(x) \hspace{3em} T(f(x)) = f'(x)+x^3\text{.} \end{equation*}

Compute \(S(x^4+x)\text{,}\) \(S(x^4)+S(x)\text{,}\) \(T(x^4+x)\text{,}\) and \(T(x^4)+T(x)\text{.}\) Based on these computations, can you conclude that either \(S\) or \(T\) is definitely not a linear transformation?

Observation 3.1.9.

Showing \(T:V\to W\) is not a linear transformation can be done by finding an example for any one of the following.

  • Show \(T(\vec z)\not=\vec z\) (where \(\vec z\) is the additive identity of \(V\) and \(W\)).

  • Find \(\vec v,\vec w\in V\) such that \(T(\vec v+\vec w)\not=T(\vec v)+T(\vec w)\text{.}\)

  • Find \(\vec v\in V\) and \(c\in \IR\) such that \(T(c\vec v)\not=cT(\vec v)\text{.}\)

Otherwise, \(T\) can be shown to be linear by proving the following in general.

  • For all \(\vec v,\vec w\in V\text{,}\) \(T(\vec v+\vec w)=T(\vec v)+T(\vec w)\text{.}\)

  • For all \(\vec v\in V\) and \(c\in \IR\text{,}\) \(T(c\vec v)=cT(\vec v)\text{.}\)

Note the similarities between this process and showing that a subset of a vector space is or is not a subspace.

Activity 3.1.10.

Continue to consider \(S: \P_4 \rightarrow \P_3\) defined by

\begin{equation*} S(f(x)) = 2f'(x)-f''(x)\text{.} \end{equation*}
(a)

Verify that

\begin{equation*} S(f(x)+g(x))=2f'(x)+2g'(x)-f''(x)-g''(x) \end{equation*}

is equal to \(S(f(x))+S(g(x))\) for all polynomials \(f,g \in \P_4\text{.}\)

(b)

Verify that \(S(cf(x))\) is equal to \(cS(f(x))\) for all real numbers \(c\) and polynomials \(f \in \P_4\text{.}\)

(c)

Is \(S\) linear?

Activity 3.1.11.

Let polynomial maps \(S: \P \rightarrow \P\) and \(T: \P \rightarrow \P\) be defined by

\begin{equation*} S(f(x)) = (f(x))^2 \hspace{3em} T(f(x)) = 3xf(x^2) \end{equation*}
(a)

Note that \(S(0)=0\) and \(T(0)=0\text{.}\) So instead, show that \(S(x+1)\not= S(x)+S(1)\) to verify that \(S\) is not linear.

(b)

Prove that \(T\) is linear by verifying that \(T(f(x)+g(x))=T(f(x))+T(g(x))\) and \(T(cf(x))=cT(f(x))\text{.}\)

Subsection 3.1.2 Videos

Figure 24. Video: Showing a transformation is linear
Figure 25. Video: Showing a transformation is not linear

Subsection 3.1.3 Slideshow

Slideshow of activities available at https://teambasedinquirylearning.github.io/linear-algebra/2022/AT1.slides.html.

Exercises 3.1.4 Exercises

Exercises available at https://teambasedinquirylearning.github.io/linear-algebra/2022/exercises/#/bank/AT1/.

Subsection 3.1.5 Mathematical Writing Explorations

Exploration 3.1.12.

If \(V,W\) are vectors spaces, with associated zero vectors \(\vec{0}_V\) and \(\vec{0}_W\text{,}\) and \(T:V \rightarrow W\) is a linear transformation, does \(T(\vec{0}_V) = \vec{0}_W\text{?}\) Prove this is true, or find a counterexample.

Exploration 3.1.13.

Assume \(f: V \rightarrow W\) is a linear transformation between vector spaces. Let \(\vec{v} \in V\) with additive inverse \(\vec{v}^{-1}\text{.}\) Prove that \(f(\vec{v}^{-1}) = [f(\vec{v})]^{-1}\text{.}\)

Subsection 3.1.6 Sample Problem and Solution

Sample problem Example B.1.14.

You have attempted of activities on this page.
