Section1.1How do we measure velocity?

Calculus can be viewed broadly as the study of change. A natural and important question to ask about any changing quantity is “how fast is the quantity changing?”
We begin with a simple problem: a ball is tossed straight up in the air. How is the ball moving? Questions like this one are central to our study of differential calculus.

Preview Activity1.1.1.

Suppose that the height $$s$$ of a ball (in feet) at time $$t$$ (in seconds) is given by the formula $$s(t) = 64 - 16(t - 1)^2\text{.}$$ This function is graphed below on the interval $$0 \leq t \leq 3\text{.}$$

(a)Part a.

Which labeled point (A-G) corresponds to the release of the ball?
How high (in feet) was the ball when it was released?
Which labeled point corresponds to the highest point of the ball?
When (in seconds after being released) did the ball reach its highest point?
Which labeled point corresponds to the ball hitting the ground?
How long (in seconds) after being released did the ball hit the ground?

(b)Part b.

Which option best describes the behavior of the ball on the time interval $$0 \lt t \lt 1\text{?}$$
• The ball is rising.
• The ball is falling.
• The ball changes direction.
• The ball is released.
• The ball hits the ground.
Which option best describes the behavior of the ball on the time interval $$1 \lt t \lt 3\text{?}$$
• The ball is rising.
• The ball is falling.
• The ball changes direction.
• The ball is released.
• The ball hits the ground.
What occurs at the instant $$t=1\text{?}$$
• The ball is rising.
• The ball is falling.
• The ball changes direction.
• The ball is released.
• The ball hits the ground.

(c)Part c.

Consider the following expression.
\begin{equation*} AV_{[0.5,1]} = \frac{s(1)-s(0.5)}{1-0.5} \end{equation*}
Compute the value of $$AV_{[0.5,1]}\text{.}$$
What does this value measure geometrically?
• distance. The distance between the points $$(0.5, s(0.5))$$ and $$(1, s(1)) \text{.}$$
• slope. The slope of the line between the points $$(0.5, s(0.5))$$ and $$(1, s(1)) \text{.}$$
• area. The area under the graph of $$s$$ on the interval $$0.5 \leq t \leq 1 \text{.}$$
• curvature. The curvature of the graph of $$s$$ on the interval $$0.5 \leq t \leq 1 \text{.}$$
What does this value measure physically?
• acceleration. The acceleration of the ball during the interval $$0.5 \leq t \leq 1 \text{.}$$
• average velocity. The average velocity of the ball during the interval $$0.5 \leq t \leq 1 \text{.}$$
• distance. The distance that the ball travels during the interval $$0.5 \leq t \leq 1 \text{.}$$
What are the units on $$AV_{[0.5,1]}\text{?}$$
• feet per second
• feet
• seconds
• feet per second squared
• foot seconds
• none of these

Subsection1.1.1Position and average velocity

Any moving object has a position that can be considered a function of time. When the motion is along a straight line, the position is given by a single variable, which we denote by $$s(t)\text{.}$$ For example, $$s(t)$$ might give the mile marker of a car traveling on a straight highway at time $$t$$ in hours. Similarly, the function $$s$$ described in Preview Activity 1.1.1 is a position function, where position is measured vertically relative to the ground.
On any time interval, a moving object also has an average velocity. For example, to compute a car’s average velocity we divide the number of miles traveled by the time elapsed, which gives the velocity in miles per hour. Similarly, the value of $$AV_{[0.5,1]}$$ in Preview Activity 1.1.1 gave the average velocity of the ball on the time interval $$[0.5,1]\text{,}$$ measured in feet per second.
In general, we make the following definition:

Average Velocity.

For an object moving in a straight line with position function $$s(t)\text{,}$$ the average velocity of the object on the interval from $$t = a$$ to $$t = b$$, denoted $$AV_{[a,b]}\text{,}$$ is given by the formula
\begin{equation*} AV_{[a,b]} = \frac{s(b)-s(a)}{b-a}\text{.} \end{equation*}
Note well: the units on $$AV_{[a,b]}$$ are “units of $$s$$ per unit of $$t\text{,}$$” such as “miles per hour” or “feet per second.”

Activity1.1.2.

The following questions concern the position function given by $$s(t) = 64 - 16(t-1)^2\text{,}$$ considered in Preview Activity 1.1.1.
1. Compute the average velocity of the ball on each of the following time intervals: $$[0.4,0.8]\text{,}$$ $$[0.7,0.8]\text{,}$$ $$[0.79, 0.8]\text{,}$$ $$[0.799,0.8]\text{,}$$ $$[0.8,1.2]\text{,}$$ $$[0.8,0.9]\text{,}$$ $$[0.8,0.81]\text{,}$$ $$[0.8,0.801]\text{.}$$ Include units for each value.
2. On the graph provided in Figure 1.1.1, sketch the line that passes through the points $$A=(0.4, s(0.4))$$ and $$B=(0.8, s(0.8))\text{.}$$ What is the meaning of the slope of this line? In light of this meaning, what is a geometric way to interpret each of the values computed in the preceding question?
3. Use a graphing utility to plot the graph of $$s(t) = 64 - 16(t-1)^2$$ on an interval containing the value $$t = 0.8\text{.}$$ Then, zoom in repeatedly on the point $$(0.8, s(0.8))\text{.}$$ What do you observe about how the graph appears as you view it more and more closely?
4. What do you conjecture is the velocity of the ball at the instant $$t = 0.8\text{?}$$ Why?

Subsection1.1.2Instantaneous Velocity

Whether we are driving a car, riding a bike, or throwing a ball, we have an intuitive sense that a moving object has a velocity at any given moment -- a number that measures how fast the object is moving right now. For instance, a car’s speedometer tells the driver the car’s velocity at any given instant. In fact, the velocity on a speedometer is really an average velocity that is computed over a very small time interval. If we let the time interval over which average velocity is computed become shorter and shorter, we can progress from average velocity to instantaneous velocity.
Informally, we define the instantaneous velocity of a moving object at time $$t = a$$ to be the value that the average velocity approaches as we take smaller and smaller intervals of time containing $$t = a\text{.}$$ We will develop a more formal definition of instantaneous velocity soon, and this definition will be the foundation of much of our work in calculus. For now, it is fine to think of instantaneous velocity as follows: take average velocities on smaller and smaller time intervals around a specific point. If those average velocities approach a single number, then that number will be the instantaneous velocity at that point.

Activity1.1.3.

Each of the following questions concern $$s(t) = 64 - 16(t-1)^2\text{,}$$ the position function from Preview Activity 1.1.1.
1. Compute the average velocity of the ball on the time interval $$[1.5,2]\text{.}$$ What is different between this value and the average velocity on the interval $$[0,0.5]\text{?}$$
2. Use appropriate computing technology to estimate the instantaneous velocity of the ball at $$t = 1.5\text{.}$$ Likewise, estimate the instantaneous velocity of the ball at $$t = 2\text{.}$$ Which value is greater?
3. How is the sign of the instantaneous velocity of the ball related to its behavior at a given point in time? That is, what does positive instantaneous velocity tell you the ball is doing? Negative instantaneous velocity?
4. Without doing any computations, what do you expect to be the instantaneous velocity of the ball at $$t = 1\text{?}$$ Why?
At this point we have started to see a close connection between average velocity and instantaneous velocity. Each is connected not only to the physical behavior of the moving object but also to the geometric behavior of the graph of the position function. We are interested in computing average velocities on the interval $$[a,b]$$ for smaller and smaller intervals. In order to make the link between average and instantaneous velocity more formal, think of the value $$b$$ as $$b = a + h\text{,}$$ where $$h$$ is a small (non-zero) number that is allowed to vary. Then the average velocity of the object on the interval $$[a,a+h]$$ is
\begin{equation*} AV_{[a,a+h]} = \frac{s(a+h)-s(a)}{h}\text{,} \end{equation*}
with the denominator being simply $$h$$ because $$(a+h) - a = h\text{.}$$ Note that when $$h \lt 0\text{,}$$ $$AV_{[a,a+h]}$$ measures the average velocity on the interval $$[a+h,a]\text{.}$$
To find the instantaneous velocity at $$t = a\text{,}$$ we investigate what happens as the value of $$h$$ approaches zero.

Example1.1.2.Computing instantaneous velocity for a falling ball.

The position function for a falling ball is given by $$s(t) = 16 - 16t^2$$ (where $$s$$ is measured in feet and $$t$$ in seconds).
1. Find an expression for the average velocity of the ball on a time interval of the form $$[0.5, 0.5+h]$$ where $$-0.5 \lt h \lt 0.5$$ and $$h \ne 0\text{.}$$
2. Use this expression to compute the average velocity on $$[0.5,0.75]$$ and $$[0.4,0.5]\text{.}$$
3. Make a conjecture about the instantaneous velocity at $$t = 0.5\text{.}$$
Solution.
1. We make the assumptions that $$-0.5 \lt h \lt 0.5$$ and $$h \ne 0$$ because $$h$$ cannot be zero (otherwise there is no interval on which to compute average velocity) and because the function only makes sense on the time interval $$0 \le t \le 1\text{,}$$ as this is the duration of time during which the ball is falling. We want to compute and simplify
\begin{equation*} AV_{[0.5, 0.5+h]} = \frac{s(0.5+h) - s(0.5)}{(0.5+h) - 0.5}\text{.} \end{equation*}
We start by finding $$s(0.5+h)\text{.}$$ To do so, we follow the rule that defines the function $$s\text{.}$$
\begin{align*} s(0.5+h) \amp = 16 - 16(0.5 + h)^2\\ \amp = 16 - 16(0.25 + h + h^2)\\ \amp = 16 - 4 - 16h - 16h^2\\ \amp = 12 - 16h - 16h^2\text{.} \end{align*}
Now, returning to our computation of the average velocity, we find that
\begin{align*} AV_{[0.5, 0.5+h]} \amp = \frac{s(0.5+h) - s(0.5)}{(0.5+h) - 0.5}\\ \amp = \frac{(12 - 16h - 16h^2) - (16 - 16(0.5)^2)}{0.5 + h - 0.5}\\ \amp = \frac{12 - 16h - 16h^2 - 12}{h}\\ \amp = \frac{-16h - 16h^2}{h}\text{.} \end{align*}
At this point, we note two things: first, the expression for average velocity clearly depends on $$h\text{,}$$ which it must, since as $$h$$ changes the average velocity will change. Further, we note that since $$h$$ can never equal zero, we may remove the common factor of $$h$$ from the numerator and denominator. It follows that
\begin{equation*} AV_{[0.5, 0.5+h]} = -16 - 16h\text{.} \end{equation*}
2. From this expression we can compute the average for any small positive or negative value of $$h\text{.}$$ For instance, to obtain the average velocity on $$[0.5,0.75]\text{,}$$ we let $$h = 0.25\text{,}$$ and the average velocity is $$-16 - 16(0.25) = -20$$ ft/sec. To get the average velocity on $$[0.4, 0.5]\text{,}$$ we let $$h = -0.1\text{,}$$ and compute the average velocity as
\begin{equation*} -16 - 16(-0.1) = -14.4\ \text{ft/sec}\text{.} \end{equation*}
3. We can even explore what happens to $$AV_{[0.5, 0.5+h]}$$ as $$h$$ gets closer and closer to zero. As $$h$$ approaches zero, $$-16h$$ will also approach zero, so it appears that the instantaneous velocity of the ball at $$t = 0.5$$ should be $$-16$$ ft/sec.

Activity1.1.4.

For the function given by $$s(t) = 64 - 16(t-1)^2$$ from Preview Activity 1.1.1, find the most simplified expression you can for the average velocity of the ball on the interval $$[2, 2+h]\text{.}$$ Use your result to compute the average velocity on $$[1.5,2]$$ and to estimate the instantaneous velocity at $$t = 2\text{.}$$ Finally, compare your earlier work in Activity 1.1.3.

Subsection1.1.3Summary

• For an object moving in a straight line with position function $$s(t)\text{,}$$ the average velocity of the object on the interval from $$t = a$$ to $$t = b$$, denoted $$AV_{[a,b]}\text{,}$$ is given by the formula
\begin{equation*} AV_{[a,b]} = \frac{s(b)-s(a)}{b-a}\text{.} \end{equation*}
• The average velocity on $$[a,b]$$ can be viewed geometrically as the slope of the line between the points $$(a,s(a))$$ and $$(b,s(b))$$ on the graph of $$y = s(t)\text{,}$$ as shown in Figure 1.1.3.
• Given a moving object whose position at time $$t$$ is given by a function $$s\text{,}$$ the average velocity of the object on the time interval $$[a,b]$$ is given by $$AV_{[a,b]} = \frac{s(b) - s(a)}{b-a}\text{.}$$ Viewing the interval $$[a,b]$$ as having the form $$[a,a+h]\text{,}$$ we equivalently compute average velocity by the formula $$AV_{[a,a+h]} = \frac{s(a+h) - s(a)}{h}\text{.}$$
• The instantaneous velocity of a moving object at a fixed time is estimated by considering average velocities on shorter and shorter time intervals that contain the instant of interest.

Exercises1.1.4Exercises

1.

The graph below shows the distance traveled, $$D$$ (in miles) as a function of time, $$t$$ (in hours).
(Click on the graph to get a larger version.)
a) For each of the intervals, find the values of $$\Delta D$$ and $$\Delta t$$ between the indicated start and end times. Enter your answers in their respective columns in the table below.
 Time Interval $$\Delta D$$ $$\Delta t$$ t = 1.5 to t = 4.5 t = 2 to t = 3.5 t = 1 to t = 3
b) Based on your results from (a) it follows that the average rate of change of $$D$$ is constant, it does not depend over which interval of time you choose. What is the constant rate of change of $$D\text{?}$$
$$\frac{ \Delta D }{ \Delta t} =$$
c) Which of the statements below CORRECTLY explains the significance of your answer to part (b)? Select ALL that apply (more than one may apply).
1. It is the acceleration of the car over the five hour time interval.
2. It is the average velocity of the car over the first two hours.
3. It is the slope of the line.
4. It is how far the car will travel in a half-hour.
5. It is the total distance the car travels in five hours.
6. It represents the car’s velocity.
7. None of the above.

2.

A ball is thrown into the air by a baby alien on a planet in the system of Alpha Centauri with a velocity of $$23$$ ft/s. Its height in feet after $$t$$ seconds is given by $$y=23t-20t^{2}\text{.}$$
a.) Find the average velocity for the time period beginning when $$t_{0}=3$$ second and lasting for the given time.
$$t=.01$$ sec:
$$t=.005$$ sec:
$$t=.002$$ sec :
$$t=.001$$ sec:
b.) Estimate the instanteneous velocity when $$t=3\text{.}$$
NOTE: For the above answers, you may have to enter 6 or 7 significant digits if you are using a calculator.

3.

Let $$\ f(x) = 9 - x^2\text{.}$$
a) Compute each of the following expressions and interpret each as an average rate of change:
(i) $$\ \ \ \frac{f( 1 ) - f(0)}{ 1 - 0} = \$$
(ii) $$\ \ \frac{f( 3 ) - f( 1 )}{3 - 1 } = \$$
(iii) $$\ \frac{f( 3 ) - f(0)}{3 - 0} = \$$
b) Based on the graph sketched below, match each of your answers in (i) - (iii) with one of the lines labeled A - F. Type the corresponding letter of the line segment next to the appropriate formula. Clearly not all letters will be used.
(click on image to enlarge)
 $$\frac{f( 1 ) - f(0)}{ 1 - 0}$$ $$\frac{f( 3 ) - f( 1 )}{3 - 1 }$$ $$\frac{f( 3 ) - f(0)}{3 - 0}$$

4.

The table below gives the average temperature, $$T\text{,}$$ at a depth $$d\text{,}$$ in a borehole in Belleterre, Quebec.
 $$d \mbox{, depth} \ (m)$$ $$T \mbox{, temp} \ \left( C^{\circ} \right)$$ 25 5.50 50 5.20 75 5.10 100 5.10 125 5.30 150 5.50 175 5.75 200 6.00 225 6.25 250 6.50 275 6.75 300 7.00
Evaluate $$\Delta T / \Delta d$$ on the following intervals
a) $$50 \leq d \leq 125$$ $$\Delta T / \Delta d$$ =
b) $$125 \leq d \leq 250$$ $$\Delta T / \Delta d$$ =
c) $$75 \leq d \leq 125$$ $$\Delta T / \Delta d$$ =
d) Which of the statements below correctly explains the significance of your answer to part (c)? Select all that apply (more than one may apply).
1. 0.004 is the slope of the graph of at $$d = 75\text{.}$$
2. Over the interval from 75 meters to 125 meters, the temperature changes on average at a rate of 0.004 degrees Celsius per meter.
3. The temperature changes by a total of 0.004 degrees Celsius when moving from a depth 75 meters to 125 meters.
4. The temperature is changing at a rate of 0.004 degrees Celsius per minute when the depth is 75 meters.
5. On average, the temperature is changing at a rate of 0.004 degrees Celsius per minute over the interval $$75 \leq d \leq 125$$ .
6. None of the above

5.

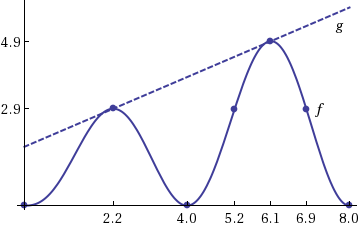

Consider the graphs of $$f(x)$$ and $$g(x)$$ below:
For each interval given below, decide whether the average rate of change of $$f(x)$$ or $$g(x)$$ is greater over that particular interval.
 Interval Which function has GREATER average rate of change? $$2.2 \leq x \leq 4$$ f g both have an equal rate of change $$2.2 \leq x \leq 6.9$$ f g both have an equal rate of change $$5.2 \leq x \leq 8$$ f g both have an equal rate of change $$0 \leq x \leq 2.2$$ f g both have an equal rate of change $$5.2 \leq x \leq 6.1$$ f g both have an equal rate of change

6.

Consider the graphs of $$f(x)$$ and $$g(x)$$ below:
For each interval given below, decide whether the average rate of change of $$f(x)$$ is positive, negative, or zero over that particular interval.
 Interval Sign of Average Rate of Change of $$f(x)$$ $$2.2 \leq x \leq 6.9$$ positive negative zero $$0 \leq x \leq 2.2$$ positive negative zero $$2.2 \leq x \leq 4$$ positive negative zero $$5.2 \leq x \leq 6.9$$ positive negative zero $$5.2 \leq x \leq 6.1$$ positive negative zero

7.

Consider the function $$f(x) = 3 x - 8$$ and find the following:
a) The average rate of change between the points $$(-1, f(-1) )$$ and $$( 4 , f( 4 ) )$$ .
b) The average rate of change between the points $$(a, f(a) )$$ and $$(b, f(b) )$$ .
c) The average rate of change between the points $$(x, f(x) )$$ and $$(x+h, f(x+h) )$$ .

8.

A car is driven at an increasing speed, starting at noon. Which of the following could be a graph of the distance the car has traveled as a function of time past noon?
 1 2 3 4 5 6 7 8
figure .

9.

A bungee jumper dives from a tower at time $$t=0\text{.}$$ Her height $$h$$ (measured in feet) at time $$t$$ (in seconds) is given by the graph in Figure 1.1.4. In this problem, you may base your answers on estimates from the graph or use the fact that the jumper’s height function is given by $$s(t) = 100\cos(0.75t) \cdot e^{-0.2t}+100\text{.}$$
1. What is the change in vertical position of the bungee jumper between $$t=0$$ and $$t=15\text{?}$$
2. Estimate the jumper’s average velocity on each of the following time intervals: $$[0,15]\text{,}$$ $$[0,2]\text{,}$$ $$[1,6]\text{,}$$ and $$[8,10]\text{.}$$ Include units on your answers.
3. On what time interval(s) do you think the bungee jumper achieves her greatest average velocity? Why?
4. Estimate the jumper’s instantaneous velocity at $$t=5\text{.}$$ Show your work and explain your reasoning, and include units on your answer.
5. Among the average and instantaneous velocities you computed in earlier questions, which are positive and which are negative? What does negative velocity indicate?

10.

A diver leaps from a 3 meter springboard. His feet leave the board at time $$t=0\text{,}$$ he reaches his maximum height of 4.5 m at $$t = 1.1$$ seconds, and enters the water at $$t = 2.45\text{.}$$ Once in the water, the diver coasts to the bottom of the pool (depth 3.5 m), touches bottom at $$t=7\text{,}$$ rests for one second, and then pushes off the bottom. From there he coasts to the surface, and takes his first breath at $$t=13\text{.}$$
1. Let $$s(t)$$ denote the function that gives the height of the diver’s feet (in meters) above the water at time $$t\text{.}$$ (Note that the “height” of the bottom of the pool is $$-3.5$$ meters.) Sketch a carefully labeled graph of $$s(t)$$ on the provided axes in Figure 1.1.5. Include scale and units on the vertical axis. Be as detailed as possible.
2. Based on your graph in (a), what is the average velocity of the diver between $$t = 2.45$$ and $$t=7\text{?}$$ Is his average velocity the same on every time interval within $$[2.45,7]\text{?}$$
3. Let the function $$v(t)$$ represent the instantaneous vertical velocity of the diver at time $$t$$ (i.e. the speed at which the height function $$s(t)$$ is changing; note that velocity in the upward direction is positive, while the velocity of a falling object is negative). Based on your understanding of the diver’s behavior, as well as your graph of the position function, sketch a carefully labeled graph of $$v(t)$$ on the axes provided in Figure 1.1.6. Include scale and units on the vertical axis. Write several sentences that explain how you constructed your graph, discussing when you expect $$v(t)$$ to be zero, positive, negative, relatively large, and relatively small.
4. Is there a connection between the two graphs that you can describe? What can you say about the velocity graph when the height function is increasing? decreasing? Make as many observations as you can.

11.

According to the U.S. census, the population of the city of Grand Rapids, MI, was 181,843 in 1980; 189,126 in 1990; and 197,800 in 2000.
1. Between 1980 and 2000, by how many people did the population of Grand Rapids grow?
2. In an average year between 1980 and 2000, by how many people did the population of Grand Rapids grow?
3. Just like we can find the average velocity of a moving body by computing change in position over change in time, we can compute the average rate of change of any function $$f\text{.}$$ In particular, the average rate of change of a function $$f$$ over an interval $$[a,b]$$ is the quotient
\begin{equation*} \frac{f(b)-f(a)}{b-a}\text{.} \end{equation*}
What does the quantity $$\frac{f(b)-f(a)}{b-a}$$ measure on the graph of $$y = f(x)$$ over the interval $$[a,b]\text{?}$$
4. Let $$P(t)$$ represent the population of Grand Rapids at time $$t\text{,}$$ where $$t$$ is measured in years from January 1, 1980. What is the average rate of change of $$P$$ on the interval $$t = 0$$ to $$t = 20\text{?}$$ What are the units on this quantity?
5. If we assume the population of Grand Rapids is growing at a rate of approximately 4% per decade, we can model the population function with the formula
\begin{equation*} P(t) = 181843 (1.04)^{t/10}\text{.} \end{equation*}
Use this formula to compute the average rate of change of the population on the intervals $$[5,10]\text{,}$$ $$[5,9]\text{,}$$ $$[5,8]\text{,}$$ $$[5,7]\text{,}$$ and $$[5,6]\text{.}$$
6. How fast do you think the population of Grand Rapids was changing on January 1, 1985? Said differently, at what rate do you think people were being added to the population of Grand Rapids as of January 1, 1985? How many additional people should the city have expected in the following year? Why?
