Section 2.1 Instantaneous Rates of Change: The Derivative

Subsection 2.1.1 Introduction

Figure 2.1.1. Video introduction to Section 2.1
A common amusement park ride lifts riders to a height then allows them to freefall a certain distance before safely stopping them. Suppose such a ride drops riders from a height of \(150\) feet. Students of physics may recall that the height (in feet) of the riders, \(t\) seconds after freefall (and ignoring air resistance, etc.) can be accurately modeled by \(f(t) = -16t^2+150\text{.}\)
Using this formula, it is easy to verify that, without intervention, the riders will hit the ground when \(f(t)=0\) so at \(t=2.5\sqrt{1.5} \approx 3.06\) seconds. Suppose the designers of the ride decide to begin slowing the riders’ fall after \(2\) seconds (corresponding to a height of \(f(2)=\) 86 ft). How fast will the riders be traveling at that time?
We have been given a position function, but what we want to compute is a velocity at a specific point in time, i.e., we want an instantaneous velocity. We do not currently know how to calculate this.
However, we do know from common experience how to calculate an average velocity. (If we travel \(60\) miles in \(2\) hours, we know we had an average velocity of 30 mph.) We looked at this concept in Section 1.1 when we introduced the difference quotient. We have
\begin{equation*} \frac{\text{change in distance}}{\text{change in time}} = \frac{\text{“rise”}}{\text{“run”}} = \text{average velocity.} \end{equation*}
We can approximate the instantaneous velocity at \(t=2\) by considering the average velocity over some time period containing \(t=2\text{.}\) If we make the time interval small, we will get a good approximation. (This fact is commonly used. For instance, high speed cameras are used to track fast moving objects. Distances are measured over a fixed number of frames to generate an accurate approximation of the velocity.)
Consider the interval from \(t=2\) to \(t=3\) (just before the riders hit the ground). On that interval, the average velocity is
\begin{equation*} \frac{f(3)-f(2)}{3-2} = \frac{6-86}{1} =-80\,\text{ft/s}\text{,} \end{equation*}
where the minus sign indicates that the riders are moving down. By narrowing the interval we consider, we will likely get a better approximation of the instantaneous velocity. On \([2,2.5]\) we have
\begin{equation*} \frac{f(2.5)-f(2)}{2.5-2} = \frac{50-86}{0.5} =-72\,\text{ft/s}\text{.} \end{equation*}
We can do this for smaller and smaller intervals of time. For instance, over a time span of one tenth of a second, i.e., on \([2,2.1]\text{,}\) we have
\begin{equation*} \frac{f(2.1)-f(2)}{2.1-2} = \frac{79.44-86}{0.1} =-65.6\,\text{ft/s}\text{.} \end{equation*}
Over a time span of one hundredth of a second, on \([2,2.01]\text{,}\) the average velocity is
\begin{equation*} \frac{f(2.01)-f(2)}{2.01-2} = \frac{85.3584-86}{0.01} =-64.16\,\text{ft/s}\text{.} \end{equation*}
What we are really computing is the average velocity on the interval \([2,2+h]\) for small values of \(h\text{.}\) That is, we are computing
\begin{equation*} \frac{f(2+h) - f(2)}{h} \end{equation*}
where \(h\) is small.
We really want to use \(h=0\text{,}\) but this, of course, returns the familiar “\(0/0\)” indeterminate form. So we employ a limit, as we did in Section 1.1.
We can approximate the value of this limit numerically with small values of \(h\) as seen in Figure 2.1.2. It looks as though the velocity is approaching -64 fts.
\(h\) Average Velocity ( fts)
\(1\) \(\phantom{Average}{-80}\)
\(0.5\) \(\phantom{Average}{-72}\)
\(0.1\) \(\phantom{Average}{-65.6}\)
\(0.01\) \(\phantom{Average}{-64.16}\)
\(0.001\) \(\phantom{Average}{-64.016}\)
Figure 2.1.2. Approximating the instantaneous velocity with average velocities over a small time period \(h\)
Computing the limit directly gives
\begin{align*} \lim_{h\to 0} \frac{f(2+h)-f(2)}{h} \amp = \lim_{h\to 0}\frac{-16(2+h)^2+150 - (-16(2)^2+150)}{h}\\ \amp = \lim_{h\to 0}\frac{-16(4+4h+h^2)+150 - 86}{h}\\ \amp = \lim_{h\to 0}\frac{-64-64h-16h^2+64}{h}\\ \amp = \lim_{h\to 0}\frac{-64h-16h^2}{h}\\ \amp = \lim_{h\to 0}(-64 -16h)\\ \amp =-64\text{.} \end{align*}
Graphically, we can view the average velocities we computed numerically as the slopes of secant lines on the graph of \(f\) going through the points \((2,f(2))\) and \((2+h,f(2+h))\text{.}\) In Figures 2.1.3–2.1.5, the secant line corresponding to \(h=1\) is shown in three contexts. Figure 2.1.3 shows a “zoomed out” version of \(f\) with its secant line. In Figure 2.1.4, we zoom in around the points of intersection between \(f\) and the secant line. Notice how well this secant line approximates \(f\) between those two points — it is a common practice to approximate functions with straight lines.
A downward-curving graph of function f(t) with its secant line corresponding to t=2 and t=3.
The graph starts at the origin and is drawn on the first quadrant. The horizontal \(t\) axis is drawn between \(0\) to \(3\text{,}\) and the \(y\) axis is drawn between \(0\) to \(150\text{.}\) The graph has a decreasing slope, gently declining from points \((0, 150)\) to \((3,0)\text{.}\) A secant line is drawn on the curve from \(t=2\) and \(t=3\text{.}\)
Figure 2.1.3. The function \(f(t)\) and its secant line corresponding to \(t=2\) and \(t=3\)
The previous graph of function f(t) that is zoomed in near t=2, with its secant line from t=2 to t=3.
The graph appears to start at the point \((1.8,0)\) and is drawn on the first quadrant. The horizontal \(t\) axis is drawn between \(1.8\) to \(3.4\text{,}\) and the \(y\) axis is drawn between \(0\) to \(120\text{.}\) The curve appears to be coinciding with the secant line.
Figure 2.1.4. The function \(f(t)\) and a secant line corresponding to \(t=2\) and \(t=3\text{,}\) zoomed in near \(t=2\)
The graph of function f(t) that is further zoomed in near t=2.
The graph appears to start at the point \((1.4,0)\) and is drawn on the first quadrant. The horizontal \(t\) axis is drawn between \(1.4\) to \(2.6\text{,}\) and the \(y\) axis is drawn between \(0\) to \(120\text{.}\) The curve appears to be coinciding with the secant line that is drawn on the function at \(t=2\text{.}\) The secant line is above the curve on the left of the point of intersection and is below the curve to its right.
Figure 2.1.5. The function \(f(t)\) with the same secant line, zoomed in further
The graph of function f(t) that is highly zoomed in near t=2.
The graph appears to start at the point \((1.4,0)\) and is drawn on the first quadrant. The horizontal \(t\) axis is drawn between \(1.4\) to \(2.6\text{,}\) and the \(y\) axis is drawn between \(0\) to \(120\text{.}\) The curve appears to be coinciding with the tangent line at \(t=2\text{.}\)
Figure 2.1.6. The function \(f(t)\) with its tangent line at \(t=2\)
As \(h\to 0\text{,}\) these secant lines approach the tangent line, a line that goes through the point \((2,f(2))\) with the special slope of \(-64\text{.}\) In Figure 2.1.5 and Figure 2.1.6, we zoom in around the point \((2,86)\text{.}\) We see the secant line, which approximates \(f\) well, but not as well the tangent line shown in Figure 2.1.6.
We have just introduced a number of important concepts that we will flesh out more within this section. First, we formally define two of them.

Definition 2.1.7. Derivative at a Point.

Let \(f\) be a continuous function on an open interval \(I\) and let \(c\) be in \(I\text{.}\) The derivative of \(f\) at \(c\text{,}\) denoted \(\fp(c)\text{,}\) is
\begin{equation*} \lim_{h\to 0}\frac{f(c+h)-f(c)}{h}\text{,} \end{equation*}
provided the limit exists. If the limit exists, we say that \(f\) is differentiable at \(c\text{;}\) if the limit does not exist, then \(f\) is not differentiable at \(c\text{.}\) If \(f\) is differentiable at every point in \(I\text{,}\) then \(f\) is differentiable on \(I\text{.}\)
Figure 2.1.8. Video presentation of Definition 2.1.7

Definition 2.1.9. Tangent Line.

Let \(f\) be continuous on an open interval \(I\) and differentiable at \(c\text{,}\) for some \(c\) in \(I\text{.}\) The line with equation \(\ell(x) = \fp(c)(x-c)+f(c)\) is the tangent line to the graph of \(f\) at \(c\text{;}\) that is, it is the line through \((c,f(c))\) whose slope is the derivative of \(f\) at \(c\text{.}\)
Some examples will help us understand these definitions.

Example 2.1.10. Finding derivatives and tangent lines.

Let \(f(x) = 3x^2+5x-7\text{.}\) Find:
  1. \(\displaystyle \fp(1)\)
  2. The equation of the tangent line to the graph of \(f\) at \(x=1\text{.}\)
  3. \(\displaystyle \fp(3)\)
  4. The equation of the tangent line to the graph \(f\) at \(x=3\text{.}\)
Solution 1.
  1. We compute this directly using Definition 2.1.7.
    \begin{align*} \fp(1)\amp = \lim_{h\to 0} \frac{f(1+h)-f(1)}{h}\\ \amp = \lim_{h\to 0} \frac{3(1+h)^2+5(1+h)-7 - (3(1)^2+5(1)-7)}{h}\\ \amp = \lim_{h\to 0} \frac{3(1+2h+h^2)+5+5h-7 - 1}{h}\\ \amp = \lim_{h\to 0} \frac{3+6h+3h^2+5+5h-8}{h}\\ \amp = \lim_{h\to 0} \frac{3h^2+11h}{h}\\ \amp = \lim_{h\to 0} (3h+11)\\ \amp = 11\text{.} \end{align*}
  2. The tangent line at \(x=1\) has slope \(\fp(1)\) and goes through the point \((1,f(1)) = (1,1)\text{.}\) Thus the tangent line has equation, in point-slope form, \(y = 11(x-1) + 1\text{.}\) In slope-intercept form we have \(y = 11x-10\text{.}\)
  3. Again, using the definition,
    \begin{align*} \fp(3)\amp = \lim_{h\to 0} \frac{f(3+h)-f(3)}{h}\\ \amp = \lim_{h\to 0} \frac{3(3+h)^2+5(3+h)-7 - (3(3)^2+5(3)-7)}{h}\\ \amp = \lim_{h\to 0} \frac{3(9+6h+h^2)+15+3h-7 - 35}{h}\\ \amp = \lim_{h\to 0} \frac{27+18h+3h^2+15+3h-42}{h}\\ \amp = \lim_{h\to 0} \frac{3h^2+23h}{h}\\ \amp = \lim_{h\to 0} 3h+23\\ \amp = 23\text{.} \end{align*}
  4. The tangent line at \(x=3\) has slope \(23\) and goes through the point \((3,f(3)) = (3,35)\text{.}\) Thus the tangent line has equation \(y=23(x-3)+35 = 23x-34\text{.}\)
A graph of \(f\) is given in Figure 2.1.11 along with the tangent lines at \(x=1\) and \(x=3\text{.}\)
A graph of function 3x^2+5x-7 and its tangent line at x =1 and x=3.
The graph starts at origin \((0,0)\) the \(x\) axis ends at \(4\) while the \(y\) axis ends at \(60\text{.}\) The curve starts in the third quadrant and moves into the first quadrant with an \(x\) intercept at \(1\text{,}\) the curve reaches point \((4,60)\) and continues further. Two tangents are drawn on the curve at \(x=1\) and \(x=3\text{.}\)
Figure 2.1.11. A graph of \(f(x) = 3x^2+5x-7\) and its tangent lines at \(x=1\) and \(x=3\)
Solution 2. Video solution
In Definition 2.1.7, we assumed that the function is continuous, but this is actually not necessary. One can in fact prove that a function has to be continuous at any point where it is differentiable. Or, in other words, a function cannot be differentiable at a point of discontinuity. This is explained in the video in Figure 2.1.12.
Figure 2.1.12. Showing that every differentiable function is continuous
Another important line that can be created using information from the derivative is the normal line. It is perpendicular to the tangent line, hence its slope is the negative-reciprocal of the tangent line’s slope.

Definition 2.1.13. Normal Line.

Let \(f\) be continuous on an open interval \(I\) and differentiable at \(c\text{,}\) for some \(c\) in \(I\text{.}\) The normal line to the graph of \(f\) at \(c\) is the line with equation
\begin{equation*} n(x) =\frac{-1}{\fp(c)}(x-c)+f(c)\text{,} \end{equation*}
when \(\fp(c)\neq 0\text{.}\) (When \(\fp(c)=0\text{,}\) the normal line is the vertical line through \(\left(c,f(c)\right)\text{;}\) that is, \(x=c\text{.}\))

Example 2.1.14. Finding equations of normal lines.

Let \(f(x) = 3x^2+5x-7\text{,}\) as in Example 2.1.10. Find the equations of the normal lines to the graph of \(f\) at \(x=1\) and \(x=3\text{.}\)
Solution.
In Example 2.1.10, we found that \(\fp(1)=11\text{.}\) Hence at \(x=1\text{,}\) the normal line will have slope \(-1/11\text{.}\) An equation for the normal line is
\begin{equation*} n(x) = \frac{-1}{11}(x-1)+1\text{.} \end{equation*}
The normal line is plotted with \(y=f(x)\) in Figure 2.1.15. Note how the line looks perpendicular to \(f\text{.}\) (A key word here is “looks.” Mathematically, we say that the normal line is perpendicular to \(f\) at \(x=1\) as the slope of the normal line is the negative-reciprocal of the slope of the tangent line. However, normal lines may not always look perpendicular.
A graph of function 3x^2+5x-7 along with its normal line at x=1.
The graph starts at the origin. The \(x\) axis ends at \(4\) in the diagram while the \(y\) axis ends at \(3\text{.}\) The function is a straight line that rises steeply from points \((0.9,0)\) to point \((1.1, 3.2)\text{.}\) The normal is drawn on the line at point \((1,1)\text{.}\)
Figure 2.1.15. A graph of \(f(x)=3x^2+5x-7\text{,}\) along with its normal line at \(x=1\)
The aspect ratio of the picture of the graph plays a big role in this. When using graphing software, there is usually an option called Zoom Square that keeps the aspect ratio \(1:1\)
We also found that \(\fp(3) = 23\text{,}\) so the normal line to the graph of \(f\) at \(x=3\) will have slope \(-1/23\text{.}\) An equation for the normal line is
\begin{equation*} n(x) = \frac{-1}{23}(x-3)+35\text{.} \end{equation*}
Linear functions are easy to work with; many functions that arise in the course of solving real problems are not easy to work with. A common practice in mathematical problem solving is to approximate difficult functions with not-so-difficult functions. Lines are a common choice. It turns out that at any given point on the graph of a differentiable function \(f\text{,}\) the best linear approximation to \(f\) is its tangent line. That is one reason we’ll spend considerable time finding tangent lines to functions.
One type of function that does not benefit from a tangent line approximation is a line; it is rather simple to recognize that the tangent line to a line is the line itself. We look at this in the following example.

Example 2.1.16. Finding the derivative of a linear function.

Consider \(f(x) = 3x+5\text{.}\) Find the equation of the tangent line to \(f\) at \(x=1\) and \(x=7\text{.}\)
Solution.
We find the slope of the tangent line by using Definition 2.1.7.
\begin{align*} \fp(1) \amp = \lim_{h\to 0}\frac{f(1+h)-f(1)}{h}\\ \amp = \lim_{h\to 0} \frac{3(1+h)+5 - (3+5)}{h}\\ \amp = \lim_{h\to 0} \frac{3h}{h}\\ \amp = \lim_{h\to 0} 3\\ \amp = 3\text{.} \end{align*}
We just found that \(\fp(1) = 3\text{.}\) That is, we found the instantaneous rate of change of \(f(x) = 3x+5\) is \(3\text{.}\) This is not surprising; lines are characterized by being the only functions with a constant rate of change. That rate of change is called the slope of the line. Since their rates of change are constant, their instantaneous rates of change are always the same; they are all the slope.
So given a line \(f(x) = ax+b\text{,}\) the derivative at any point \(x\) will be \(a\text{;}\) that is, \(\fp(x) = a\text{.}\)
It is now easy to see that the tangent line to the graph of \(f\) at \(x=1\) is just \(f\text{,}\) with the same being true at \(x=7\text{.}\)
We often desire to find the tangent line to the graph of a function without knowing the actual derivative of the function. While we will eventually be able to find derivatives of many common functions, the algebra and limit calculations on some functions are complex. Until we develop further techniques, the best we may be able to do is approximate the tangent line. We demonstrate this in the next example.

Example 2.1.17. Numerical approximation of the tangent line.

Approximate the equation of the tangent line to the graph of \(f(x)=\sin(x)\) at \(x=0\text{.}\)
Solution.
In order to find the equation of the tangent line, we need a slope and a point. The point is given to us: \((0,\sin(0)) = (0,0)\text{.}\) To compute the slope, we need the derivative. This is where we will make an approximation. Recall that
\begin{equation*} \fp(0) \approx \frac{\sin(0+h)- \sin(0) }{h} \end{equation*}
for a small value of \(h\text{.}\) We choose (somewhat arbitrarily) to let \(h=0.1\text{.}\) Thus
\begin{equation*} \fp(0) \approx \frac{\sin(0.1)-\sin(0) }{0.1} \approx 0.9983\text{.} \end{equation*}
Thus our approximation of the equation of the tangent line is \(y = 0.9983(x-0) +0 = 0.9983x\text{;}\) it is graphed in Figure 2.1.18. The graph seems to imply the approximation is rather good.
A graph of function sin(x) with an approximation to its tangent line at x=0.
The \(y\) axis of the graph is drawn from \(-1\) to \(1\) and the \(x\) axis is drawn from \(-\pi\) and \(\pi\text{.}\) The sine graph has an \(x\) intercept at \(-\pi\) then enters the third quadrant and forms an upward facing parabola with its vertex at point \((-\pi/2, -1)\text{.}\) It passes throgh the origin then enters the first quadrant forming a downward facing parabola with vertex at \((\pi/2, 1)\text{.}\)
Figure 2.1.18. \(f(x) = \sin(x)\) graphed with an approximation to its tangent line at \(x=0\)
Recall from Section 1.3 that \(\lim_{x\to 0}\frac{\sin(x)}x =1\text{,}\) meaning for values of \(x\) near \(0\text{,}\) \(\sin(x) \approx x\text{.}\) Since the slope of the line \(y=x\) is \(1\) at \(x=0\text{,}\) it should seem reasonable that “the slope of \(f(x)=\sin(x)\)” is near \(1\) at \(x=0\text{.}\) In fact, since we approximated the value of the slope to be \(0.9983\text{,}\) we might guess the actual value is 1. We’ll come back to this later.
Consider again Example 2.1.10. To find the derivative of \(f\) at \(x=1\text{,}\) we needed to evaluate a limit. To find the derivative of \(f\) at \(x=3\text{,}\) we needed to again evaluate a limit. We have this process:
\begin{equation*} \begin{array}{c}\text{input specific}\\\text{number }c\end{array}\longrightarrow \begin{array}{|c|}\hline\text{do something}\\\text{to }f\text{ and }c\\\hline\end{array} \longrightarrow\begin{array}{c}\text{return}\\\text{number }f'(c)\end{array} \end{equation*}
This process describes a function; given one input (the value of \(c\)), we return exactly one output (the value of \(\fp(c)\)). The “do something” box is where the tedious work (taking limits) of this function occurs.
Instead of applying this function repeatedly for different values of \(c\text{,}\) let us apply it just once to the variable \(x\text{.}\) We then take a limit just once. The process now looks like:
\begin{equation*} \begin{array}{c}\text{input}\\\text{variable }x\end{array}\longrightarrow \begin{array}{|c|}\hline\text{do something}\\\text{to }f\text{ and }x\\\hline\end{array} \longrightarrow\begin{array}{c}\text{return}\\\text{function }f'(x)\end{array} \end{equation*}
The output is the derivative function, \(\fp(x)\text{.}\) The \(\fp(x)\) function will take a number \(c\) as input and return the derivative of \(f\) at \(c\text{.}\) This calls for a definition.

Definition 2.1.19. Derivative Function.

Let \(f\) be a differentiable function on an open interval \(I\text{.}\) The function
\begin{equation*} \fp(x) = \lim_{h\to 0} \frac{f(x+h)-f(x)}{h} \end{equation*}
is the derivative of \(f\text{.}\)
Let \(y = f(x)\text{.}\) The following notations all represent the derivative of \(f\text{:}\)
\begin{equation*} \fp(x)\ =\ y'\ =\ \frac{dy}{dx}\ =\ \frac{df}{dx}\ =\ \frac{d}{dx}(f)\ =\ \frac{d}{dx}(y)\text{.} \end{equation*}
Figure 2.1.20. Video presentation of Definition 2.1.19
Important: The notation \(\frac{dy}{dx}\) is one symbol; it is not the fraction “\(dy/dx\)”. The notation, while somewhat confusing at first, was chosen with care. A fraction-looking symbol was chosen because the derivative has many fraction-like properties. Among other places, we see these properties at work when we talk about the units of the derivative, when we discuss the Chain Rule, and when we learn about integration (topics that appear in later sections and chapters).
Figure 2.1.21. Explaining derivative notation
Examples will help us understand this definition.

Example 2.1.22. Finding the derivative of a function.

Let \(f(x) = 3x^2+5x-7\) as in Example 2.1.10. Find \(\fp(x)\text{.}\)
Solution.
\begin{align*} \fp(x) \amp = \lim_{h\to 0} \frac{f(x+h)-f(x)}{h}\\ \amp = \lim_{h\to 0} \frac{3(x+h)^2+5(x+h)-7-(3x^2+5x-7)}{h}\\ \amp = \lim_{h\to 0} \frac{3h^2 +6xh+5h}{h}\\ \amp = \lim_{h\to 0} (3h+6x+5)\\ \amp = 6x+5 \end{align*}
So \(\fp(x) = 6x+5\text{.}\) Recall earlier we found that \(\fp(1) = 11\) and \(\fp(3) = 23\text{.}\) Note our new computation of \(\fp(x)\) affirms these facts.

Example 2.1.23. Finding the derivative of a function.

Let \(f(x) = \frac{1}{x+1}\text{.}\) Find \(\fp(x)\text{.}\)
Solution 1.
\begin{align*} \fp(x) \amp = \lim_{h\to 0} \frac{f(x+h)-f(x)}{h}\\ \amp = \lim_{h\to 0} \frac{\frac{1}{x+h+1}-\frac{1}{x+1}}{h}\\ \end{align*}

Now find common denominator then subtract; pull \(1/h\) out front to facilitate reading.

\begin{align*} \amp = \lim_{h\to 0} \frac{1}{h}\cdot\left(\frac{x+1}{(x+1)(x+h+1)} - \frac{x+h+1}{(x+1)(x+h+1)}\right)\\ \end{align*}

Now simplify algebraically.

\begin{align*} \amp = \lim_{h\to 0} \frac 1h\cdot\left(\frac{x+1-(x+h+1)}{(x+1)(x+h+1)}\right) \\ \amp = \lim_{h\to 0} \frac1h\cdot\left(\frac{-h}{(x+1)(x+h+1)}\right)\\ \end{align*}

Finally, apply the limit.

\begin{align*} \amp = \lim_{h\to 0} \frac{-1}{(x+1)(x+h+1)}\\ \amp = \frac{-1}{(x+1)(x+1)}\\ \amp = \frac{-1}{(x+1)^2}\text{.} \end{align*}
So \(\fp(x) = \frac{-1}{(x+1)^2}\text{.}\) To practice using our notation, we could also state
\begin{equation*} \frac{d}{dx}\left(\frac{1}{x+1}\right) = \frac{-1}{(x+1)^2}\text{.} \end{equation*}
Solution 2. Video solution

Example 2.1.24. Finding the derivative of a function.

Find the derivative of \(f(x) = \sin(x)\text{.}\)
Solution 1.
Before applying Definition 2.1.19, note that once this is found, we can find the actual tangent line to \(f(x) = \sin(x)\) at \(x=0\text{,}\) whereas we settled for an approximation in Example 2.1.17.
\begin{align*} \fp(x) \amp = \lim_{h\to 0} \frac{\sin(x+h)-\sin(x)}{h} \amp \amp \text{Derivative definition}\\ \amp = \lim_{h\to 0} \frac{\sin(x)\cos(h)+\cos(x)\sin(h)-\sin(x)}{h} \amp \amp \text{Angle addition identity}\\ \amp = \lim_{h\to 0} \frac{\sin(x)(\cos(h)-1) + \cos(x)\sin(h)}{h} \amp \amp \text{Regrouped and factored}\\ \amp = \lim_{h\to 0} \left(\frac{\sin(x)(\cos(h)-1)}{h} + \frac{\cos(x)\sin(h)}{h} \right) \amp \amp \text{Split into two fractions}\\ \amp = \lim_{h\to 0} \sin(x) \cdot \lim_{h\to 0}\frac{\cos(h)-1}{h}\\ \amp\quad{}+\lim_{h\to 0}\cos(x)\cdot \lim_{h\to 0}\frac{\sin(h)}{h} \amp \amp \text{Product/sum limit rules}\\ \amp = \sin(x)\cdot 0 + \cos(x) \cdot 1 \amp \amp \text{Applied } \knowl{./knowl/xref/thm_special_limits.html}{\text{Theorem 1.3.17}}\\ \amp = \cos(x). \amp \amp \text{(Are you surprised?)} \end{align*}
We have found that when \(f(x) = \sin(x)\text{,}\) \(\fp(x) = \cos(x)\text{.}\) This should be somewhat amazing; the result of a tedious limit process on the sine function is a nice function. Then again, perhaps this is not entirely surprising. The sine function is periodic — it repeats itself on regular intervals. Therefore its rate of change also repeats itself on the same regular intervals. We should have known the derivative would be periodic; we now know exactly which periodic function it is.
Thinking back to Example 2.1.17, we can find the slope of the tangent line to \(f(x)=\sin(x)\) at \(x=0\) using our derivative. We approximated the slope as \(0.9983\text{;}\) we now know the slope is exactly \(\cos(0) =1\text{.}\)
Using similar techniques, we can show that the derivative of \(\cos(x)\) is \(-\sin(x)\text{.}\) See if you can show this yourself; if you get stuck, you can check out the video in Figure 2.1.25.
Figure 2.1.25. Finding the derivative of \(\cos(x)\)
Solution 2. Video solution

Example 2.1.26. Finding the derivative of a piecewise defined function.

Find the derivative of the absolute value function,
\begin{equation*} f(x) = \abs{x} = \begin{cases} -x \amp x\lt 0 \\ x \amp x\geq 0\end{cases}\text{.} \end{equation*}
The graph of function of absolute value of x, the function forms a v shape with it’s vertex at origin.
The \(y\) axis of the graph is drawn from \(-0.2\) to \(1\) and the \(x\) axis from \(-1\) to \(1\text{.}\) The function is a straight line, in the second quadrant it appears to pass through point \((-1,1)\) and decreases until it meets the origin. From the origin, it steeply increases after it enters the first quadrant and appears to pass through point \((1,1)\text{.}\)
Figure 2.1.27. The absolute value function \(f(x) = \abs{x}\text{.}\) Notice how the slope of the lines (and hence the tangent lines) abruptly changes at \(x=0\text{.}\)
Solution.
We need to evaluate \(\lim_{h\to0}\frac{f(x+h)-f(x)}{h}\text{.}\) As \(f\) is piecewise-defined, we need to consider separately the limits when \(x\lt 0\) and when \(x \gt 0\text{.}\)
When \(x\lt 0\text{:}\)
\begin{align*} \frac{d}{dx}(-x) \amp = \lim_{h\to 0}\frac{-(x+h) - (-x)}{h}\\ \amp = \lim_{h\to 0}\frac{-h}{h}\\ \amp = \lim_{h\to 0}-1\\ \amp = -1\text{.} \end{align*}
When \(x \gt 0\text{,}\) a similar computation shows that \(\frac{d}{dx}(x) = 1\text{.}\)
We need to also find the derivative at \(x=0\text{.}\) By the definition of the derivative at a point, we have
\begin{equation*} \fp(0) = \lim_{h\to0}\frac{f(0+h)-f(0)}{h}\text{.} \end{equation*}
Since \(x=0\) is the point where our function’s definition switches from one piece to the other, we need to consider left and right-hand limits. Consider the following, where we compute the left and right hand limits side by side.
\begin{align*} \amp\lim_{h\to0^-}\frac{f(0+h)-f(0)}{h}\\ \amp= \lim_{h\to0^-}\frac{-h-0}{h}\\ \amp=\lim_{h\to0^-}-1\\ \amp =-1 \end{align*}
\begin{align*} \amp \lim_{h\to0^+}\frac{f(0+h)-f(0)}{h}\\ \amp =\lim_{h\to0^+}\frac{h-0}{h}\\ \amp =\lim_{h\to0^+}1\\ \amp =1 \end{align*}
The last lines of each column tell the story: the left and right hand limits are not equal. Therefore the limit does not exist at \(0\text{,}\) and \(f\) is not differentiable at \(0\text{.}\) So we have
\begin{equation*} \fp(x) = \begin{cases} -1 \amp x\lt 0 \\ 1 \amp x \gt 0\end{cases}\text{.} \end{equation*}
At \(x=0\text{,}\) \(\fp(x)\) does not exist; there is a jump discontinuity at \(0\text{;}\) see Figure 2.1.28. So \(f(x) = \abs{x}\) is differentiable everywhere except at \(0\text{.}\)
The graph of derivative of function of absolute value of x.
The \(y\) axis and the \(x\) axis are drawn from \(-1\) to \(1\text{.}\) In the first quadrant the derivative of the function starts from the open point \((0,1)\) and continues as a function \(y=1\) that moves towards right parallel to the \(x\) axis at \(y=1\) for all values of \(x\text{,}\) but value for \(x=0\) does not exist. In the third quadrant the derivative of the function starts from the open point \((0,-1)\) and continues as a function \(y=-1\) that moves towards left parallel to the \(x\) axis at \(y=-1\) for all values of \(x\text{,}\) but value for \(x=0\) does not exist.
Figure 2.1.28. A graph of the derivative of \(f(x) = \abs{x}\)
The point of non-differentiability came where the piecewise defined function switched from one piece to the other. Our next example shows that this does not always cause trouble.

Example 2.1.29. Finding the derivative of a piecewise defined function.

Find the derivative of \(f(x)\text{,}\) where
\begin{equation*} f(x) = \begin{cases}\sin(x) \amp x\leq \pi/2 \\ 1 \amp x \gt \pi/2\end{cases}\text{.} \end{equation*}
Graph of function sin(x) until pi/2 and then y = 1.
The \(y\) axis is from \(0\) to \(1.5\) and the \(x\) axis from \(0\) to \(\pi/2\) the curve starts at \(0\) and increases until point \((\pi/2,1)\) and then moves horizontal to the \(x\) axis at \(y=1\text{.}\)
Figure 2.1.30. A graph of \(f(x)\) as defined in Example 2.1.29
Solution.
Using Example 2.1.24, we know that when \(x\lt \pi/2\text{,}\) \(\fp(x) = \cos(x)\text{.}\) It is easy to verify that when \(x \gt \pi/2\text{,}\) \(\fp(x) = 0\text{;}\) consider:
\begin{equation*} \lim_{h\to0}\frac{f(x+h) - f(x)}{h} = \lim_{h\to0}\frac{1-1}{h} = \lim_{h\to0}0 =0\text{.} \end{equation*}
So far we have
\begin{equation*} \fp(x) = \begin{cases}\cos(x) \amp x\lt \pi/2\\ 0 \amp x\gt\pi/2\end{cases}\text{.} \end{equation*}
We still need to find \(\fp(\pi/2)\text{.}\) Notice at \(x=\pi/2\) that both pieces of \(\fp\) are \(0\text{,}\) meaning we can state that \(\fp(\pi/2)=0\text{.}\)
Being more rigorous, we can again evaluate the difference quotient limit at \(x=\pi/2\text{,}\) utilizing again left- and right-hand limits. We will begin with the left-hand limit:
\begin{align*} \amp \lim_{h\to0^-}\frac{f(\pi/2+h)-f(\pi/2)}{h}\\ \amp =\lim_{h\to0^-}\frac{\sin(\pi/2+h)-\sin(\pi/2)}{h}\\ \amp =\lim_{h\to0^-}{ \frac{\sin(\frac{\pi}{2})\cos(h)+\sin(h)\cos(\frac{\pi}{2})-\sin(\frac{\pi}{2})}{h}}\\ \amp =\lim_{h\to0^-}\frac{1\cdot\cos(h)+\sin(h)\cdot 0-1}{h}\\ \amp =\lim_{h\to0^-}\frac{\cos(h)-1}{h} \cdot \lim_{h\to0^-}\frac{\sin(h)}{h}\\ \amp=1\cdot 0\\ \amp =0\text{.} \end{align*}
Notice we used Limits of Common Functions to finally evaluate the limit.
Now we will find the right-hand limit:
\begin{align*} \amp \lim_{h\to0^+}\frac{f(\pi/2+h)-f(\pi/2)}{h}\\ \amp =\lim_{h\to0^+}\frac{1-1}{h}\\ \amp =\lim_{h\to0^+}\frac{0}{h}\\ \amp =0\text{.} \end{align*}
Since both the left and right hand limits are \(0\) at \(x=\pi/2\text{,}\) the limit exists and \(\fp(\pi/2)\) exists (and is \(0\)). Therefore we can fully write \(\fp\) as
\begin{equation*} \fp(x) = \begin{cases}\cos(x) \amp x\leq\pi/2\\ 0 \amp x \gt \pi/2\end{cases}\text{.} \end{equation*}
See Figure 2.1.31 for a graph of this derivative function.
Graph of derivative of function for this example.
Graph of the derivative function, the derivative exists at \(\pi/2\) and follows a curve of \(\cos(x)\) for \(x\leq\pi/2\) and \(0\) after \(x=\pi\text{.}\) There is a sharp bend at \(\pi/2\text{,}\) hence it is not differentiable at that point, since for \(x=\pi\) there exists \(f(x)=0\) function is continuous.
Figure 2.1.31. A graph of \(\fp(x)\) in Example 2.1.29.
For one more example involving piecewise-defined functions, we turn to the video in Figure 2.1.32.
Figure 2.1.32. Determining when a piecewise-defined function is differentiable
Recall we pseudo-defined a continuous function as one in which we could sketch its graph without lifting our pencil. We can give a pseudo-definition for differentiability as well: it is a continuous function that does not have any “sharp corners” or a vertical tangent line. One such sharp corner is shown in Figure 2.1.27. Even though the function \(f\) in Example 2.1.29 is piecewise-defined, the transition is “smooth” hence it is differentiable. Note how in the graph of \(f\) in Figure 2.1.30 it is difficult to tell when \(f\) switches from one piece to the other; there is no “corner.”

Subsection 2.1.2 Differentiability on Closed Intervals

When we defined the derivative at a point in Definition 2.1.7, we specified that the interval \(I\) over which a function \(f\) was defined needed to be an open interval. Open intervals are required so that we can take a limit at any point \(c\) in \(I\text{,}\) meaning we want to approach \(c\) from both the left and right.
Recall we also required open intervals in Definition 1.5.1 when we defined what it meant for a function to be continuous. Later, we used one-sided limits to extend continuity to closed intervals. We now extend differentiability to closed intervals by again considering one-sided limits.
Our motivation is three-fold. First, we consider “common sense.” In Example 2.1.22 we found that when \(f(x) = 3x^2+5x-7\text{,}\) \(\fp(x) = 6x+5\text{,}\) and this derivative is defined for all real numbers, hence \(f\) is differentiable everywhere. It seems appropriate to also conclude that \(f\) is differentiable on closed intervals, like \([0,1]\text{,}\) as well. After all, \(\fp(x)\) is defined at both \(x=0\) and \(x=1\text{.}\)
Secondly, consider \(f(x) = \sqrt{x}\text{.}\) The domain of \(f\) is \([0,\infty)\text{.}\) Is \(f\) differentiable on its domain — specifically, is \(f\) differentiable at \(0\text{?}\) (We’ll consider this in the next example.)
Finally, in later sections, having the derivative defined on closed intervals will prove useful. One such place is Section 7.4 where the derivative plays a role in measuring the length of a curve.
After a formal definition of differentiability on a closed interval, we explore the concept in an example.

Definition 2.1.33. Differentiability on a Closed Interval.

Let \(f\) be continuous on \([a,b]\) and differentiable on \((a,b)\text{.}\) If the one-sided limits
\begin{align*} \lim_{h\to0^+}\frac{f(a+h)-f(a)}{h} \amp \amp \amp \lim_{h\to0^-}\frac{f(b+h)-f(b)}{h} \end{align*}
exist, then we say \(f\) is differentiable on \([a,b]\text{.}\)
For all the functions \(f\) in this text, we can determine differentiability on \([a,b]\) by considering the limits \(\lim_{x\to a^+}\fp(x)\) and \(\lim_{x\to b^-}\fp(x)\text{.}\) This is often easier to evaluate than the limit of the difference quotient.

Example 2.1.34. Differentiability at an endpoint.

Consider \(f(x) = \sqrt{x}=x^{1/2}\) and \(g(x) = \sqrt{x^3}=x^{3/2}\text{.}\) The domain of each function is \([0,\infty)\text{.}\) It can be shown that each is differentiable on \((0,\infty)\text{;}\) determine the differentiability of each at \(x=0\text{.}\)
Solution.
We start by considering \(f\) and take the right-hand limit of the difference quotient:
\begin{align*} \lim_{h\to0^+}\frac{f(a+h)-f(a)}{h} \amp = \lim_{h\to0^+}\frac{\sqrt{0+h}-\sqrt{0}}h\\ \amp = \lim_{h\to0^+}\frac{\sqrt{h}}h\\ \amp = \lim_{h\to0^+}\frac{1}{h^{1/2}}\ =\ \infty\text{.} \end{align*}
The one-sided limit of the difference quotient does not exist at \(x=0\) for \(f\text{;}\) therefore \(f\) is differentiable on \((0,\infty)\) and not differentiable on \([0,\infty)\text{.}\)
We state (without proof) that \(\fp(x) = 1/\big(2\sqrt{x}\big)\text{.}\) Note that \(\lim_{x\to 0^+}\fp(x) = \infty\text{;}\) this limit was easier to evaluate than the limit of the difference quotient, though it required us to already know the derivative of \(f\text{.}\)
Now consider \(g\text{:}\)
\begin{align*} \lim_{h\to0^+}\frac{g(a+h)-g(a)}{h} \amp = \lim_{h\to0^+}\frac{\sqrt{(0+h)^3}-\sqrt{0}}h\\ \amp = \lim_{h\to0^+}\frac{h^{3/2}}h\\ \amp = \lim_{h\to0^+}h^{1/2}\ =\ 0\text{.} \end{align*}
As the one-sided limit exists at \(x=0\text{,}\) we conclude \(g\) is differentiable on its domain of \([0,\infty)\text{.}\)
Two curves, one of function of square root of x and the other of x to the power 3/2.
The graph has two curves that form a leaf shape. The \(y\) axis is drawn from \(0\) to \(1\) and the \(x\) axis is drawn from \(-0.2\) to \(1.2\text{.}\) The curve on top is of function \(x^(1/2)\) and its a downward facing curve. The one below is of function \(x^(3/2)\) and it is an upward facing curve. The two graphs intersect at points \((0,0)\) and \((1,1)\text{.}\)
Figure 2.1.35. A graph of \(y=x^{1/2}\) and \(y=x^{3/2}\) in Example 2.1.34
We state (without proof) that \(\gp(x) = 3\sqrt{x}/2\text{.}\) Note that \(\lim_{x\to0^+}\gp(x) = 0\text{;}\) again, this limit is easier to evaluate than the limit of the difference quotient.
The two functions are graphed in Figure 2.1.35. Note how \(f(x) = \sqrt{x}\) seems to “go vertical” as \(x\) approaches 0, implying the slopes of its tangent lines are growing toward infinity. Also note how the slopes of the tangent lines to \(g(x)= \sqrt{x^3}\) approach 0 as \(x\) approaches 0.
Most calculus textbooks omit this topic and simply avoid specific cases where it could be applied. We choose in this text to not make use of the topic unless it is “needed.” Many theorems in later sections require a function \(f\) to be differentiable on an open interval \(I\text{;}\) we could remove the word “open” and just use “\(\ldots\) on an interval \(I\text{,}\)” but choose to not do so in keeping with the current mathematical tradition. Our first use of differentiability on closed intervals comes in Chapter 7, where we measure the lengths of curves.
This section defined the derivative; in some sense, it answers the question of “What is the derivative?” The next section addresses the question “What does the derivative mean?”

Exercises 2.1.3 Exercises

Terms and Concepts

1.
  • True
  • False
Let \(f\) be a position function. The average rate of change on \([a,b]\) is the slope of the line through the points \((a, f(a))\) and \((b,f(b))\text{.}\)
2.
  • True
  • False
The definition of the derivative of a function at a point involves taking a limit.
3.
In your own words, explain the difference between the average rate of change and instantaneous rate of change.
4.
In your own words, explain the difference between Definitions 2.1.7 and Definition 2.1.19.
5.
Let \(y=f(x)\text{.}\) Give three different notations equivalent to “\(f'(x)\text{.}\)
6.
If two lines are perpendicular, what is true of their slopes?

Problems

Exercise Group.
Use the definition of the derivative to compute the derivative of the given function.
7.
\(f(x) = 6\)
8.
\(f(x) = 2x\)
9.
\(f(t) = 4-3t\)
10.
\(g(x) = x^2\)
11.
\(h(x) = x^3\)
12.
\(f(x) = 3x^2-x+4\)
13.
\(r(x) = \frac{1}{x}\)
14.
\(r(s) = \frac{1}{s-2}\)
Exercise Group.
A function and an \(x\)-value are given. (Note: these functions are the same as those given in Exercises 7–14.) Give the equations of the tangent line and the normal line at that \(x\)-value.
15.
\(f(x)=6\) at \(x=-2\)
16.
\(f(x)=2x\) at \(x=3\)
17.
\(f(x)=4-3x\) at \(x=7\)
18.
\(g(x)=x^2\) at \(x=2\)
19.
\(h(x)=x^3\) at \(x=4\)
20.
\(f(x)=3x^2-x+4\) at \(x=-1\)
21.
\(r(x)=\frac{1}{x}\) at \(x=-2\)
22.
\(r(x)=\frac{1}{x-2}\) at \(x=3\)
Exercise Group.
A function \(f\) and an \(x\)-value \(a\) are given. Approximate the equation of the tangent line to the graph of \(f\) at \(x=a\) by numerically approximating \(f'(a)\text{,}\) using \(h=0.1\text{.}\)
23.
\(f(x) = {x^{2}-2x+5}\) and \(a=-2\)
24.
\(f(x) = {-\frac{10}{x+8}}\) and \(a=-9\)
25.
\(f(x) = {e^{x}}\) and \(a=-4\)
26.
\(f(x) = \cos(x)\) and \(a=0\)
27.

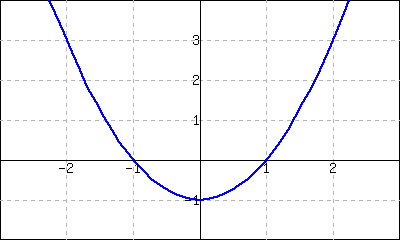

The graph of \(f(x)=x^2-1\) is shown.
Graph of function x squared minus 1, curve is U-shaped.
(a)
Use the graph to approximate the slope of the tangent line to \(f\) at \((-1,0)\text{,}\) \((0,-1)\text{,}\) and \((2,3)\text{.}\)
(b)
Using the definition of the derivative, find \(\fp(x)\text{.}\)
(c)
Use the derivative to find the slope of the tangent line at the points \((-1,0)\text{,}\) \((0,-1)\) and \((2,3)\text{.}\)
28.

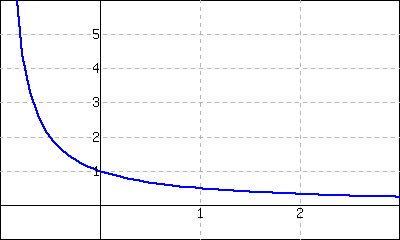

The graph of \(f(x)=\frac{1}{x+1}\) is shown.
Graph of function f(x) = 1 divided by (x+1).
(a)
Use the graph to approximate the slope of the tangent line to \(f\) at \((0,1)\) and \((1,0.5)\text{.}\)
(b)
Using the definition of the derivative, find \(\fp(x)\text{.}\)
(c)
Use the derivative to find the slope of the tangent line at the points \((0,1)\) and \((1,0.5)\text{.}\)
Exercise Group.
A graph of a function \(f(x)\) is given. Using the graph, sketch \(\fp(x)\text{.}\)
29.
Graph of function f(x) that is a straight line.
The \(y\) axis if drawn from \(-1\) to \(3\) and the \(x\) axis from \(-2\) to \(5\text{.}\) The graph is a decreasing straight line primarily in the first quadrant that passes through \(2\) on the \(y\) axis and \(4\) on the \(x\) axis.
30.
Graph of function is U shaped primarily in the second and third quadrant.
The \(y\) axis is from \(-3\) to \(3\) and the \(x\) axis \(-6\) and \(2\text{.}\) The U-shaped curve has a minimun at point \((-2,-3)\) it intersects the \(x\) axis at \(-4.5\) on the left and \(0.5\) on the right.
31.
Graph of curve that crosses the origin with a mixima at x=-1 and a minima at x=1.
The \(x\) axis is drawn from \(-3\) to \(3\) and the \(y\) axis from \(-5\) to \(5\text{.}\) The graph has a maxima near point \((-1,3)\) and a minima near point \((1,-3)\text{.}\) It crosses the origin then passes the maxima then crosses \(x\) axis at \(-2\) and decreases in the third quadrant and continues to infinity on the left. On the right side it decreases from the origin passes the minima and goes to infinity after crossing the \(x\) axis at \(2\) in the first quadrant.
32.
Graph of function that has maxima at even multiple of pi and minima at odd multiple of pi.
The \(y\) axis is drawn from \(-1\) to \(1\) and the \(x\) axis is drawn from \(-2* \pi\) to \(2* \pi\text{.}\) At \(x=0\) the function has a maximum of \(1\) on the left of the \(y\) axis the function decreases from \(1\) and reaches a minima of \(-1\) at \(x=-\pi\) after crossing \(-\p/2\text{.}\) Then it increases to cross the \(x\) axis at \(x=-3*\pi/2\) and increases further to reach a maximum of \(1\) in the second quadrant.
Similarly, on the right of the \(y\) axis the function decreases from \(1\) and reaches a minima of \(-1\) at \(x=\pi\) after crossing \(\p/2\text{.}\) Then it increases to cross the \(x\) axis at \(x=3*\pi/2\) and increases further to reach a maximum of \(1\) in the first quadrant.
Exercise Group.
Use the graph of the function to answer the following questions.
  1. Where is \(g(x)\gt 0\text{?}\)
  2. Where is \(g(x)\lt 0\text{?}\)
  3. Where is \(g(x) = 0\text{?}\)
  4. Where is \(g'(x) \lt 0\text{?}\)
  5. Where is \(g'(x) \gt 0\text{?}\)
  6. Where is \(g'(x) = 0\text{?}\)
33.

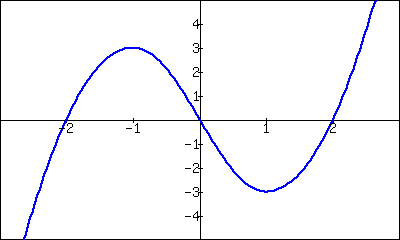

Graph of curve that crosses the origin with a mixima at x=-1 nd a minima at x=1.
34.

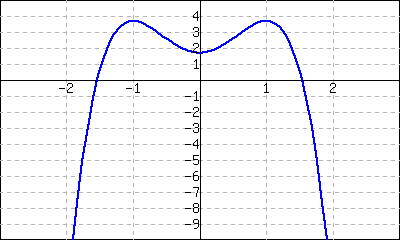

An M-shaped graph with two maxima.
Exercise Group.
A function \(f(x)\) is given, along with its domain and derivative. Determine if \(f(x)\) is differentiable on its domain.
35.
\(f(x) = \sqrt{x^5(1-x)}\text{,}\) domain is \([0,1]\text{,}\) \(\fp(x) = \frac{(5-6x)x^{3/2}}{2\sqrt{1-x}}\)
  • yes
  • no
36.
\(f(x) = \cos\left(\sqrt{x}\right)\text{,}\) domain is \([0,\infty)\text{,}\) \(\fp(x) = -\frac{\sin\left(\sqrt{x}\right)}{2\sqrt{x}}\)
  • yes
  • no
You have attempted of activities on this page.
