5.6. Stack Frames: Implementing Recursion¶
Suppose that instead of concatenating the result of the recursive call
to_str with the string from
convert_string, we modified our
algorithm to push the strings onto a stack instead of making the recursive
call. The code for this modified algorithm is shown in
Each time we make a call to
to_str, we push a character on the stack.
Returning to the previous example we can see that after the fourth call
to_str the stack would look like Figure 5. Notice
that now we can simply pop the characters off the stack and concatenate
them into the final result,

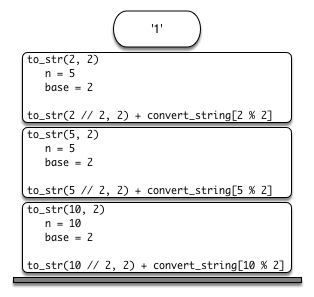

The previous example gives us some insight into how Python implements a recursive function call. When a function is called in Python, a stack frame is allocated to handle the local variables of the function. When the function returns, the return value is left on top of the stack for the calling function to access. Figure 6 illustrates the call stack after the return statement on line 4.
Notice that the call to
to_str(2 // 2, 2) leaves a return value of
"1" on the stack. This return value is then used in place of the
function call (
to_str(1, 2)) in the expression
"1" + convert_string[2 % 2], which will leave the string
"10" on the top of
the stack. In this way, the Python call stack takes the place of the
stack we used explicitly in Listing 4. In our list summing
example, you can think of the return value on the stack taking the place
of an accumulator variable.
The stack frames also provide a scope for the variables used by the function. Even though we are calling the same function over and over, each call creates a new scope for the variables that are local to the function.
